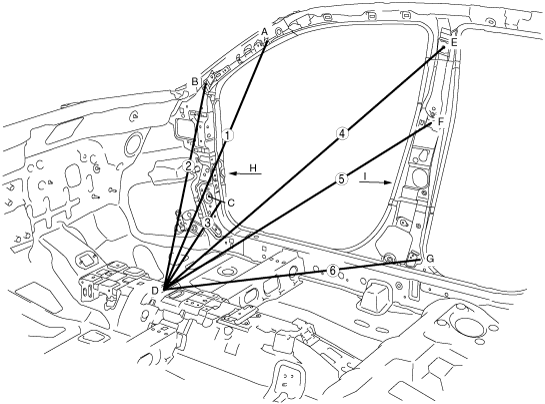

ROOM STRAIGHT-LINE DIMENSIONS (1)[DIMENSIONS]

id098010743300

b3e0980b022

b3e0980b023

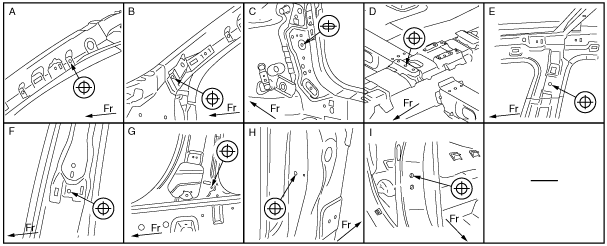

Measured location

Dimensions mm {in}

1

1,033 {40.67}

2

957 {37.68}

3

765 {30.12}

4

1,339 {52.72}

5

1,154 {45.43}

6

1,003 {39.49}

H-H’

1,485 {58.46}

I-I’

1,466 {57.72}

Measured location	Dimensions mm {in}
1	1,033 {40.67}
2	957 {37.68}
3	765 {30.12}
4	1,339 {52.72}
5	1,154 {45.43}
6	1,003 {39.49}
H-H’	1,485 {58.46}
I-I’	1,466 {57.72}
