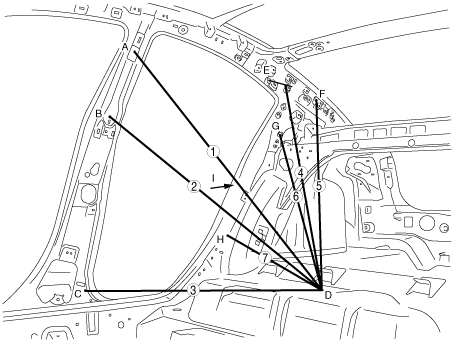

ROOM STRAIGHT-LINE DIMENSIONS (2)[DIMENSIONS]

id098010743400

4SD

b3e0980b024

b3e0980b025

Measured location

Dimensions mm {in}

1

1,046 {41.18}

2

908 {35.75}

3

816 {32.13}

4

1,081 {42.56}

5

1,211 {47.68}

6

1,079 {42.48}

7

787 {30.98}

I-I’

1,510 {59.45}

Measured location	Dimensions mm {in}
1	1,046 {41.18}
2	908 {35.75}
3	816 {32.13}
4	1,081 {42.56}
5	1,211 {47.68}
6	1,079 {42.48}
7	787 {30.98}
I-I’	1,510 {59.45}

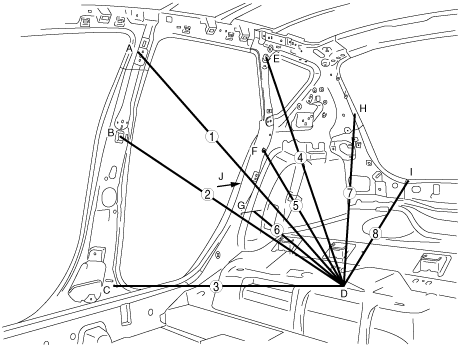

5HB

b3e0980b026

b3e0980b027

Measured location

Dimensions mm {in}

1

1,046 {41.18}

2

908 {35.75}

3

816 {32.13}

4

1,088 {42.83}

5

928 {36.54}

6

787 {30.98}

7

1,328 {52.28}

8

1,373 {54.06}

J-J’

1,510 {59.45}
