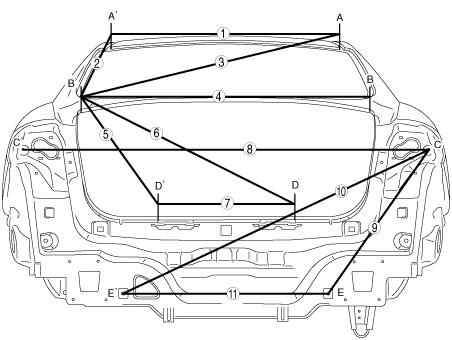

REAR BODY STRAIGHT-LINE DIMENSIONS (1)[DIMENSIONS]

id098010746300

4SD

b3e0980b028

b3e0980b029

Measured location

Dimensions mm {in}

1

1,007 {39.65}

2

781 {30.75}

3

1,190 {46.85}

4

800 {31.50}

5

425 {16.73}

6

851 {33.50}

7

679 {26.73}

8

1,436 {56.54}

9

620 {24.41}

10

1,191 {46.89}

11

720 {28.35}

Measured location	Dimensions mm {in}
1	1,007 {39.65}
2	781 {30.75}
3	1,190 {46.85}
4	800 {31.50}
5	425 {16.73}
6	851 {33.50}
7	679 {26.73}
8	1,436 {56.54}
9	620 {24.41}
10	1,191 {46.89}
11	720 {28.35}

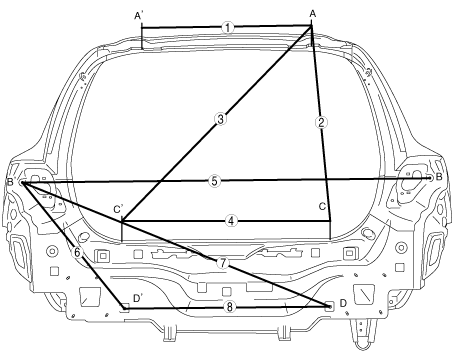

5HB

b3e0980b030

b3e0980b031

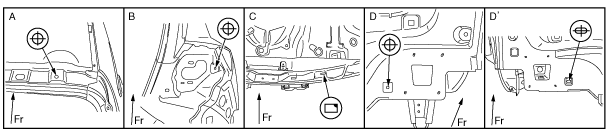

Measured location

Dimensions mm {in}

1

700 {27.56}

2

871 {34.29}

3

1,114 {43.86}

4

688 {27.09}

5

1,474 {58.03}

6

596 {23.46}

7

1,190 {46.85}

8

720 {28.35}

Measured location	Dimensions mm {in}
1	700 {27.56}
2	871 {34.29}
3	1,114 {43.86}
4	688 {27.09}
5	1,474 {58.03}
6	596 {23.46}
7	1,190 {46.85}
8	720 {28.35}
