TIMING CHAIN DISASSEMBLY

id011000505500

Caution

•  When rotating the camshaft using a wrench on the cast hexagon, the wrench may contact the rocker arm and damage the rocker arm. To prevent damage to the rocker arm when holding the camshaft on the cast hexagon, use the wrench at engine rear side as shown in the figure to secure a clearance between the cam.

am3uuw00008837

Note

•  Width at the cast hexagon of the camshaft is 22—24 mm {0.87—0.94 in}.

bes2ze00000195

1.  Disassemble in the order indicated in the table.

Vehicles with IDEVA (single tensioner type)

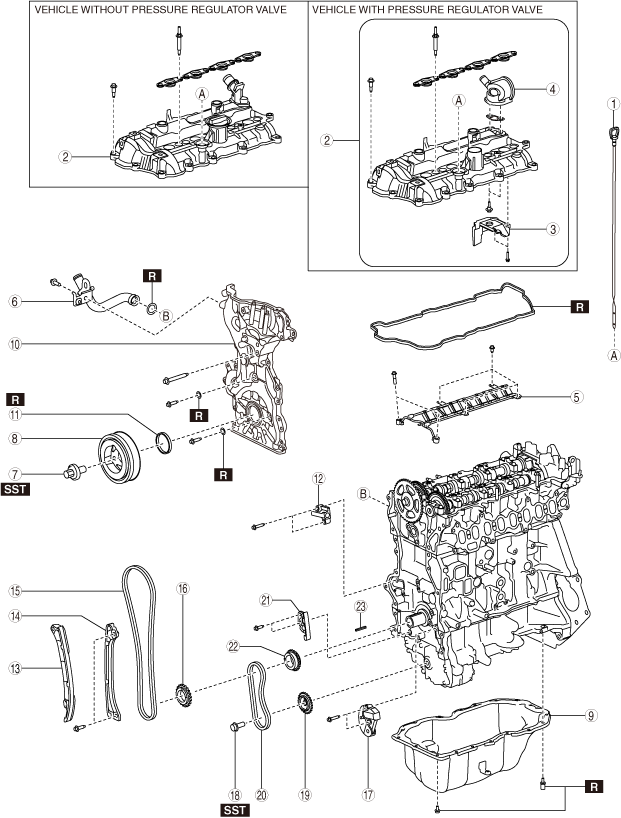

bes2ze00000167

1	Dipstick
2	Cylinder head cover
3	Oil baffle plate
4	Pressure regulator valve
5	Oil shower pipe
6	Water pipe
7	Crankshaft pulley lock bolt (See Crankshaft Pulley Lock Bolt Disassembly Note.)
8	Crankshaft pulley
9	Oil pan (See Oil Pan Disassembly Note.)
10	Engine front cover (See Engine Front Cover Disassembly Note.)
11	Front oil seal (See Front Oil Seal Disassembly Note.)
12	Timing chain tensioner (See Timing Chain Disassembly Note.)
13	Timing chain tensioner arm (See Timing Chain Disassembly Note.)
14	Timing chain guide (See Timing Chain Disassembly Note.)
15	Timing chain (See Timing Chain Disassembly Note.)
16	Crankshaft sprocket (See Timing Chain Disassembly Note.)
17	Oil pump chain tensioner (See Oil Pump Chain Disassembly Note.)
18	Oil pump driven sprocket installation bolt (See Oil Pump Chain Disassembly Note.)
19	Oil pump driven sprocket (See Oil Pump Chain Disassembly Note.)
20	Oil pump chain (See Oil Pump Chain Disassembly Note.)
21	Oil pump chain guide
22	Oil pump drive sprocket
23	Key

Vehicles with IDEVA (dual tensioner type)

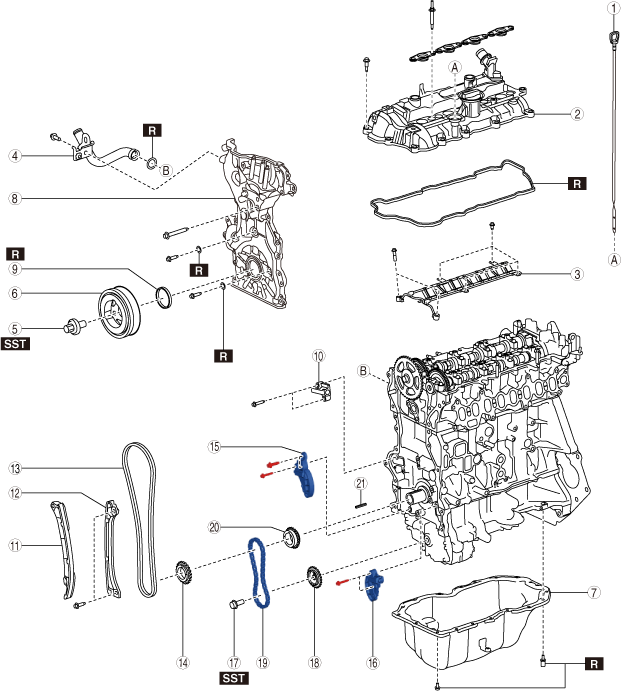

bes2ze00000168

1	Dipstick
2	Cylinder head cover
3	Oil shower pipe
4	Water pipe
5	Crankshaft pulley lock bolt (See Crankshaft Pulley Lock Bolt Disassembly Note.)
6	Crankshaft pulley
7	Oil pan (See Oil Pan Disassembly Note.)
8	Engine front cover (See Engine Front Cover Disassembly Note.)
9	Front oil seal (See Front Oil Seal Disassembly Note.)
10	Timing chain tensioner (See Timing Chain Disassembly Note.)
11	Timing chain tensioner arm (See Timing Chain Disassembly Note.)
12	Timing chain guide (See Timing Chain Disassembly Note.)
13	Timing chain (See Timing Chain Disassembly Note.)
14	Crankshaft sprocket (See Timing Chain Disassembly Note.)
15	Oil pump chain tensioner No.2 (See Oil Pump Chain Disassembly Note.)
16	Oil pump chain tensioner No.1 (See Oil Pump Chain Disassembly Note.)
17	Oil pump driven sprocket installation bolt (See Oil Pump Chain Disassembly Note.)
18	Oil pump driven sprocket (See Oil Pump Chain Disassembly Note.)
19	Oil pump chain (See Oil Pump Chain Disassembly Note.)
20	Oil pump drive sprocket
21	Key

Vehicles without IDEVA

bes2ze00000169

1	Dipstick
2	Cylinder head cover
3	Oil shower pipe
4	Crankshaft pulley lock bolt (See Crankshaft Pulley Lock Bolt Disassembly Note.)
5	Crankshaft pulley
6	Oil pan (See Oil Pan Disassembly Note.)
7	Engine oil level sensor
8	Engine front cover (See Engine Front Cover Disassembly Note.)
9	Front oil seal (See Front Oil Seal Disassembly Note.)
10	Timing chain tensioner (See Timing Chain Disassembly Note.)
11	Timing chain tensioner arm (See Timing Chain Disassembly Note.)
12	Timing chain guide (See Timing Chain Disassembly Note.)
13	Timing chain (See Timing Chain Disassembly Note.)
14	Crankshaft sprocket (See Timing Chain Disassembly Note.)
15	Oil pump chain tensioner No.2 (See Oil Pump Chain Disassembly Note.)
16	Oil pump chain tensioner No.1 (See Oil Pump Chain Disassembly Note.)
17	Oil pump driven sprocket installation bolt (See Oil Pump Chain Disassembly Note.)
18	Oil pump driven sprocket (See Oil Pump Chain Disassembly Note.)
19	Oil pump chain (See Oil Pump Chain Disassembly Note.)
20	Oil pump drive sprocket
21	Key

Crankshaft Pulley Lock Bolt Disassembly Note

1.  Hold the crankshaft using the SST.

MTX

bes2ze00000071

ATX

bes2ze00000072

2.  Remove the crankshaft pulley lock bolt.

Oil Pan Disassembly Note

1.  Remove the oil pan using a separator tool.

adejjw00003946

Engine Front Cover Disassembly Note

1.  Remove the engine front cover installation bolts.

2.  Using a screwdriver wrapped in a cloth, peel the silicone sealant away a little at a time, and remove the engine front cover.

Caution

•  Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.

•  Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.

bes2ze00000073

bes2ze00000074

Front Oil Seal Disassembly Note

1.  Remove the front oil seal using a flathead screwdriver with the tip protected by a clean cloth.

bes2ze00000075

Timing Chain Disassembly Note

1.  Loosen the timing chain tensioner using the following procedure:

(1)  Insert a wire with an approx. diameter of 1.4 mm {0.055 in} or a paper clip into the body hole of the timing chain tensioner.

bes2ze00000076

(2)  Press the timing chain in the direction of the arrow and press in the plunger of the timing chain tensioner.

bes2ze00000077

(3)  Press the wire or paper clip set in Step 1 further with the plunger pressed.

bes2ze00000078

Note

•  The wire or paper clip secures the plunger, and the tension can be released.

2.  Remove the timing chain tensioner and timing chain tensioner arm.

3.  Remove the timing chain guide.

4.  Remove the timing chain and crankshaft sprocket as a single unit.

Oil Pump Chain Disassembly Note

Single tensioner type

1.  Release the tension on oil pump chain using the following procedure.

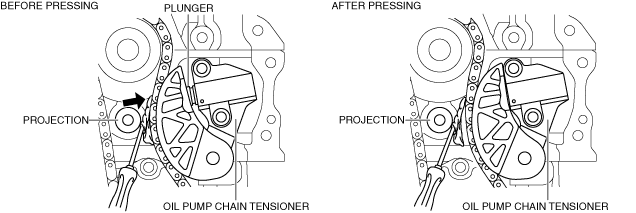

(1)  Press in the plunger of oil pump chain tensioner as shown in the figure using a screwdriver wrapped in a cloth.

bes2ze00000170

(2)  Insert a wire with an approx. diameter of 1.4 mm {0.055 in} or a paper clip into the body hole of the oil pump chain tensioner with the plunger pressed.

bes2ze00000081

Note

•  The wire or paper clip secures the plunger, and the tension can be released.

2.  Remove the oil pump chain tensioner.

3.  Remove the oil pump driven sprocket installation bolt using the following procedure.

(1)  Lock the oil pump driven sprocket against rotation using the SST.

bes2ze00000192

(2)  Remove the oil pump driven sprocket installation bolt.

4.  Remove the oil pump chain and oil pump driven sprocket as a single unit.

Dual tensioner type

1.  Release the tension on oil pump chain using the following procedure.

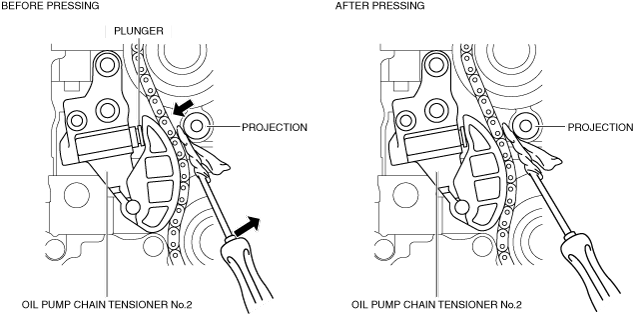

(1)  Press in the plunger of oil pump chain tensioner No.2 as shown in the figure using a screwdriver wrapped in a cloth.

bes2ze00000171

(2)  Insert a wire or paper clip into the shoe hole with the plunger pressed in.

bes2ze00000172

Note

•  When inserting a wire or paper clip, the shoe is fixed with the plunger pressed in.

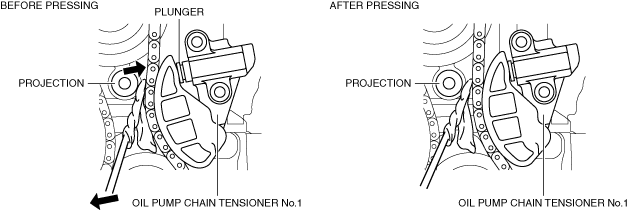

(3)  Press in the plunger of oil pump chain tensioner No.1 as shown in the figure using a screwdriver wrapped in a cloth.

bes2ze00000173

(4)  Insert a wire or paper clip into the shoe hole with the plunger pressed in.

bes2ze00000174

Note

•  When inserting a wire or paper clip, the shoe is fixed with the plunger pressed in.

2.  Remove the oil pump chain tensioner No.1 and No.2.

3.  Remove the oil pump driven sprocket installation bolt using the following procedure.

(1)  Lock the oil pump driven sprocket against rotation using the SST.

bes2ze00000192

(2)  Remove the oil pump driven sprocket installation bolt.

4.  Remove the oil pump chain and oil pump driven sprocket as a single unit.
