TRANSFER DISASSEMBLY [FW6AX-EL]

id0316g1000200

With tapered roller bearing

bfw3ja00000507

1
Drain plug, washer
2
Oil level plug, washer
3
Breather
4
Transfer oil seal (RH) No.1
5
Transfer oil seal (RH) No.2
6
Transfer oil seal (LH)
7
Drive gear case
8
Baffle plate
9
Ring gear shaft component
10
Adjustment shim (RH)
11
Bearing outer race (RH)
12
Adjustment shim (LH)
13
Bearing outer race (LH)
14
Transfer oil seal (RH) No.3
15
Bearing inner race (LH)
16
Bearing inner race (RH)
17
Ring gear shaft
18
Locknut
19
Washer
20
Companion flange component
21
Drive pinion gear component
22
Oil seal
23
Bearing inner race (rear)
24
Bearing outer race (front)
25
Bearing outer race (rear)
26
Collapsible spacer
27
Bearing inner race (front)
28
Spacer
29
Drive pinion gear
30
Front carrier

With ball bearings/tandem ball bearings

bfw3ja00000508

1
Drain plug, washer
2
Oil level plug, washer
3
Breather
4
Transfer oil seal (RH) No.1
5
Transfer oil seal (RH) No.2
6
Transfer oil seal (LH)
7
Drive gear case
8
Baffle plate
9
Ring gear shaft component
10
Adjustment shim (RH)
11
Adjustment shim (LH)
12
Transfer oil seal (RH) No.3
13
Ball bearing (RH)
14
Ball bearing (LH)
15
Ring gear shaft
16
Locknut
17
Washer
18
Companion flange component
19
Drive pinion gear component
20
Oil seal
21
Bearing inner race (rear)
22
Bearing outer race (front)
23
Bearing outer race (rear)
24
Collapsible spacer
25
Bearing inner race (front)
26
Spacer
27
Drive pinion gear
28
Front carrier

1.  Assemble the SST (49 M005 561) to the SST (49 0107 680A).

bfw2za00001078

Bolt A
Part No.: 9YA02 A220 or M12×1.75 length 40 mm
88—118 N·m {9.0—12 kgf·m, 65—87 ft·lbf}
Bolts B
Included accessory for SST (49 M005 561)
88—118 N·m {9.0—12 kgf·m, 65—87 ft·lbf}

2.  Install the transfer component to the SST.

bfw2za00001079

Bolts C, nuts
Part number: 9YA02 A242A or M12 x 1.25 bolt (length 42 mm), and nut (M12 × 1.25)
64—89 N·m {6.6—9.0 kgf·m, 48—65 ft·lbf}

3.  Remove the drain plug and washer.

4.  Remove the oil level plug and washer.

5.  Remove the breather.

6.  Insert a tape-wrapped flathead screwdriver into the notch of the transfer and remove the transfer oil seal (RH) No.1.

bfw2za00001080

7.  Insert a tape-wrapped flathead screwdriver into the lip area of the transfer oil seal (RH) No.2 as shown in the figure and remove the transfer oil seal (RH) No.2.

bfw2za00001081

8.  Insert a tape-wrapped flathead screwdriver into the lip area of the transfer oil seal (LH) as shown in the figure and remove the transfer oil seal (LH).

bfw2za00001082

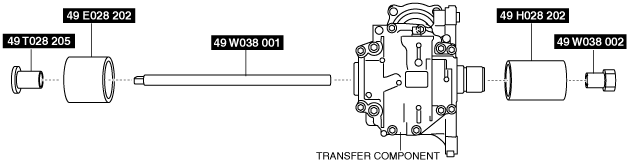

9.  Install the SSTs to the transfer component as shown in the figure.

bfw2za00001083

10.  Tighten the bolts on the left and right of the SSTs and apply pressure to the ring gear shaft component.

bfw2za00001084

11.  Remove the drive gear case installation bolts (2 large, 10 small).

bfw2za00001085

12.  Remove the drive gear case using a tape-wrapped flathead screwdriver.

bfw2za00001086

Caution
•  When removing the drive gear case, the ring gear shaft component comes off with the case and could drop and be damaged. Perform the drive gear case removal carefully.

13.  Remove the baffle plate.

bfw3ja00001185

14.  Remove the ring gear shaft component.

bfw2za00001087

15.  Remove the SSTs.

16.  Remove the following parts from the ring gear shaft component. (With tapered roller bearing)

•  Adjustment shim (RH)
•  Adjustment shim (LH)
•  Bearing outer race (RH)
•  Bearing outer race (LH)

17.  Remove the following parts from the ring gear shaft component. (With ball bearings/tandem ball bearings)

•  Adjustment shim (RH)
•  Adjustment shim (LH)

18.  Fix the toothed part of the ring gear in a vise to secure the ring gear shaft.

19.  Remove the transfer oil seal (RH) No.3 using a tape-wrapped flathead screwdriver.

bfw2za00001088

20.  Remove the bearing inner race using the following procedure. (With tapered roller bearing)

(1)  Remove the bearing inner race (LH) using the SST and a steel plate.
bfw2za00001089
(2)  Fix the toothed part of the ring gear in a vise to secure the ring gear shaft.
(3)  Remove the bearing inner race (RH) using the SST.
bfw3ja00000514

21.  Remove the ball bearing using the following procedure. (With ball bearing/tandem ball bearing)

(1)  Remove the ball bearing (LH) using the SST and a steel plate.
bfw2za00001090
(2)  Fix the toothed part of the ring gear in a vise to secure the ring gear shaft.
(3)  Remove the bearing outer race (RH) using the SST.
bfw3ja00000516
(4)  Remove the bearing inner race (RH) using the SST.
bfw3ja00000517

22.  Secure the companion flange using the SST and remove the locknut.

bfw3ja00001187

Note
•  If the nuts for installing the propeller shaft are used when installing the SST to the companion flange, install the SST through an appropriate washer because the nut diameter is small.

23.  Remove the washer.

24.  Remove the companion flange component using the SST.

bfw3ja00001188

25.  Install a locknut to the thread area of the drive pinion gear.

bfw2za00001091

26.  Lightly tap the locknut with a copper hammer and remove the drive pinion gear component.

27.  Remove the oil seal using a tape-wrapped flathead screwdriver.

bfw2za00001092

28.  Remove the bearing inner race (rear).

29.  Set the brass bar to the bearing outer race (front) end surface at the notches of the front carrier in two locations. Lightly tap the end surfaces of the outer race alternately using the brass bar and hammer, and remove the bearing outer race (front).

bfw2za00001093

30.  Set the brass bar to the bearing outer race (rear) end surface at the notches of the front carrier in two locations. Lightly tap the end surfaces of the outer race alternately using the brass bar and hammer, and remove the bearing outer race (rear).

bfw2za00001094

31.  Remove the collapsible spacer.

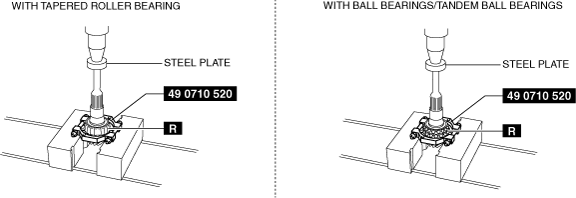

32.  Remove the bearing inner race (front) using the SST and a press, and a steel plate.

bfw3ja00000521

33.  Remove the spacer.
