DIFFERENTIAL DISASSEMBLY

id051500169500

1.  Perform the “DIFFERENTIAL BACKLASH ADJUSTMENT”.(See DIFFERENTIAL BACKLASH ADJUSTMENT.)

2.  Disassemble the differential in the order shown in the figure.

bc62zm00000006

1	Tapered roller bearing (See Tapered Roller Bearing Removal Note.)
2	Ring gear (See Ring Gear Removal Note.)
3	Pin (See Pin Removal Note.)
4	Pinion gear shaft
5	Pinion gear
6	Thrust washer
7	Side gear
8	Thrust washer
9	Differential case

Tapered Roller Bearing Removal Note

1.  Secure the differential in a vice.

bc61um00000067

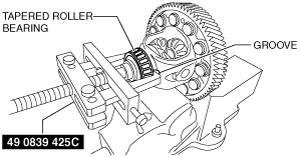

2.  Remove the tapered roller bearing (clutch housing side) using the SST.

bc61um00000068

Note

•  There is a groove in the differential case component for attaching the SST tab.

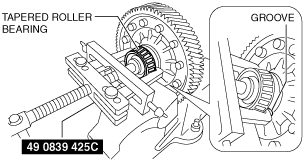

3.  Using the SST, remove the tapered roller bearing (transaxle case side).

bc61um00000069

Note

•  There is a groove in the differential case component for attaching the SST tab.

Ring Gear Removal Note

1.  Secure the differential in a vice as shown in the figure.

bc61um00000203

2.  Remove the ring gear bolts.

3.  Tap the ring gear using a plastic hammer and remove the ring gear.

Pin Removal Note

1.  Remove the pin using a punch.

bc62zm00000040
