SECONDARY GEAR AND OUTPUT GEAR ASSEMBLY

id051700664000

Structural View

bgw2za00000123

1	Output gear
2	Tapered roller bearing (converter housing side) (inner diameter 35.5 mm {1.40 in})
3	Secondary gear
4	Tapered roller bearing (transaxle case side) (inner diameter 35 mm {1.4 in})

Assembly Procedure

1.  Assemble the tapered roller bearing (converter housing side) using the following procedure:

Note

•  Tapered roller bearing size: Inner diameter approx. 35.5 mm {1.40 in}

(1)  Apply ATF (ATF FZ) to the engagement area of the tapered roller bearing and output gear.

(2)  Using the SST and press, assemble the tapered roller bearing.

bgw2za00000132

bgw2za00000133

A  :Press

2.  Assemble the secondary gear using the following procedure:

(1)  Apply ATF (ATF FZ) to the engagement area (spline area) of the secondary gear and output gear.

(2)  Using the SST and press, assemble the secondary gear.

bgw2za00000134

bgw2za00000135

A  :Press

3.  Assemble the tapered roller bearing (transaxle case side) using the following procedure:

Note

•  Tapered roller bearing size: Inner diameter approx. 35 mm {1.4 in}

(1)  Apply ATF (ATF FZ) to the engagement area of the tapered roller bearing and output gear.

(2)  Using the SST and press, assemble the tapered roller bearing.

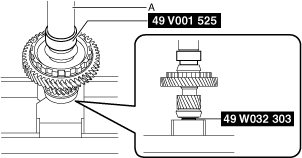

bgw2za00000136

bgw2za00000137

A  :Press
