SECONDARY SHAFT NO.1 COMPONENT DISASSEMBLY
id051500176100

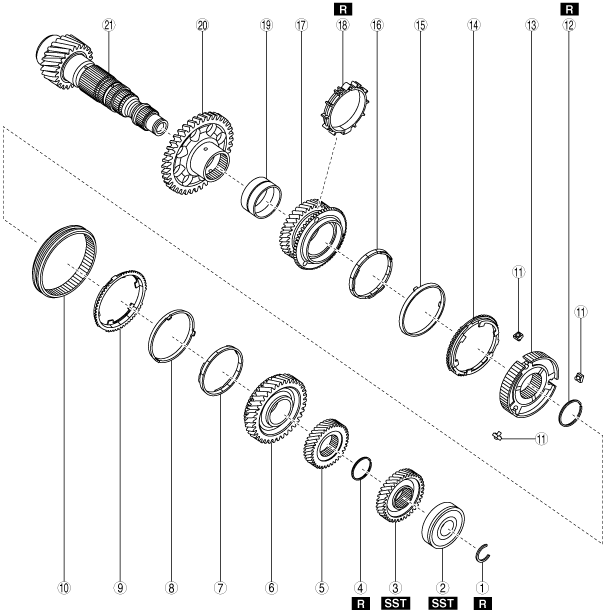

1. Disassemble the secondary shaft No.1 component in the order shown in the figure.
bd62zm00000089
|
|
1
|
Clip
|
|
2
|
Ball bearing
|
|
3
|
Secondary 5th gear
|
|
4
|
Clip
|
|
5
|
Secondary 6th gear
|
|
6
|
Secondary 3rd gear
|
|
7
|
Inner cone ring (3GR)
|
|
8
|
Middle cone ring (3GR)
|
|
9
|
Synchronizer ring (3GR)
|
|
10
|
Clutch hub sleeve
|
|
11
|
Synchronizer key
|
|
12
|
Clip
|
|
13
|
Clutch hub
|
|
14
|
Synchronizer ring (4GR)
|
|
15
|
Middle cone ring (4GR)
|
|
16
|
Inner cone ring (4GR)
|
|
17
|
Secondary 4th gear
|
|
18
|
Oil fin
(See Oil Fin Removal Note.)
|
|
19
|
Needle bearing
|
|
20
|
Reverse gear
|
|
21
|
Secondary shaft No.1
|
Ball Bearing, Secondary 5th Gear Removal Note
1. Set the SSTs and secondary shaft No.1 component in a press.
bd62zm00000187
|
2. Remove the ball bearing and secondary 5th gear simultaneously using the press.
Secondary 6th Gear Removal Note
1. Set the bearing puller (available market) and secondary shaft No.1 component in a press as shown in the figure.
bd62zm00000188
|
2. Remove the secondary 6th gear using the press.
Oil Fin Removal Note
1. Using a chisel, crush the engaging part of the oil fin and remove the oil fin.
bd62zm00000092
|
Reverse Gear Removal Note
1. Set the secondary shaft No.1 component in a press as shown in the figure.
bd62zm00000189
|
2. Remove the reverse gear using the press.
