TRANSAXLE CASE AND CLUTCH HOUSING ASSEMBLY

id051500177200


Transaxle Case Component Assembly

1.  Perform the differential preload adjustment and select a shim of the appropriate thickness. (See BEARING PRELOAD ADJUSTMENT.)

2.  Install the bolt and nut to the transaxle case component, and secure the bolt with a vise to secure the transaxle component as shown in the figure.

bd62zm00000181

Bolt
Part No.: 99450 0855 or M8×1.25 length 55 mm {2.2 in}
Nut
M8×1.25

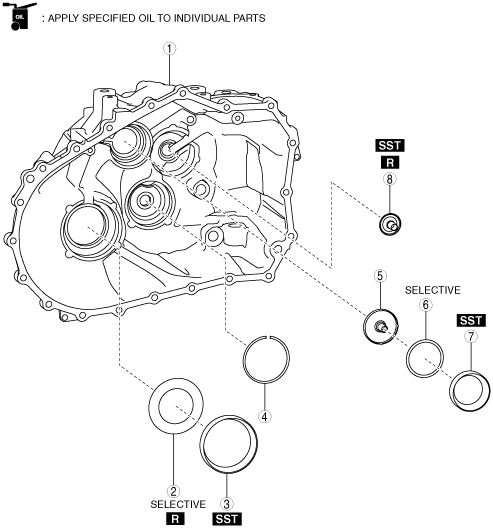

3.  Assemble the transaxle case component in the order shown in the figure.

bd62zm00000149

1
Transaxle case
2
Shim (differential)
3
Bearing outer race (differential)
(See Bearing outer race (differential) assembly note)
4
Clip
5
Funnel (secondary shaft No.2)
6
Shim (secondary shaft No.2)
7
Bearing outer race (secondary shaft No.2)
(See Bearing outer race (secondary shaft No.2) assembly note.)
8
Funnel (primary shaft)
(See Funnel (primary shaft) assembly note.)


Bearing outer race (differential) assembly note

1.  Assemble the bearing outer race to the transaxle case using the SST.

bd62zm00000150


Bearing outer race (secondary shaft No.2) assembly note

1.  Assemble the bearing outer race to the transaxle case using the SST.

bd62zm00000151


Funnel (primary shaft) assembly note

1.  Assemble the funnel to the transaxle case using the SST.

bd62zm00000152


Clutch Housing Component Assembly

1.  Assemble the clutch housing component in the order shown in the figure.

bd62zm00000153

1
Clutch housing
2
Dowel pin
3
Shim
4
Bearing outer race (differential)
(See Bearing outer race (differential) assembly note.)
5
Oil seal
(See Oil seal assembly note.)
6
Funnel (secondary shaft No.1)
7
Roller bearing
(See Roller bearing assembly note.)
8
Stopper plate
9
Funnel (secondary shaft No.2)
10
Bearing outer race (secondary shaft No.2)
11
Oil path


Bearing outer race (differential) assembly note

1.  Assemble the bearing outer race to the clutch housing using the SST.

bd62zm00000154


Oil seal assembly note

1.  Assemble a new oil seal using the SST.

bd62zm00000155


Roller bearing assembly note

1.  Assemble a new roller bearing using a punch.

bd62zm00000156
