JACKING POSITIONS, VEHICLE LIFT (2 SUPPORTS) AND SAFETY STAND (RIGID RACK) POSITIONS

id000000800500

Jacking Positions

Warning

•  Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.

Caution

•  Use safety stands to support the vehicle after it has been lifted.

Note

•  To prevent obstruction between the jack body and front bumper when the jack body is inserted, use a low-floor type jack.

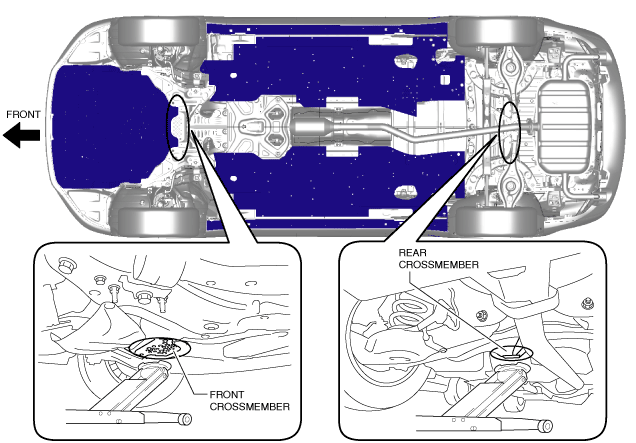

am3uuw00011578

Vehicle Lift-up Positions

Warning

•  Lifting a vehicle is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of support at the end of the arm of the lift.

Caution

•  Do not set the lift arm pad on the rib or an uneven area of the side step molding to prevent damaging or deforming the side step molding.

Front and rear

•  Both sides of the vehicle, on side sills.

Vehicles without side step molding

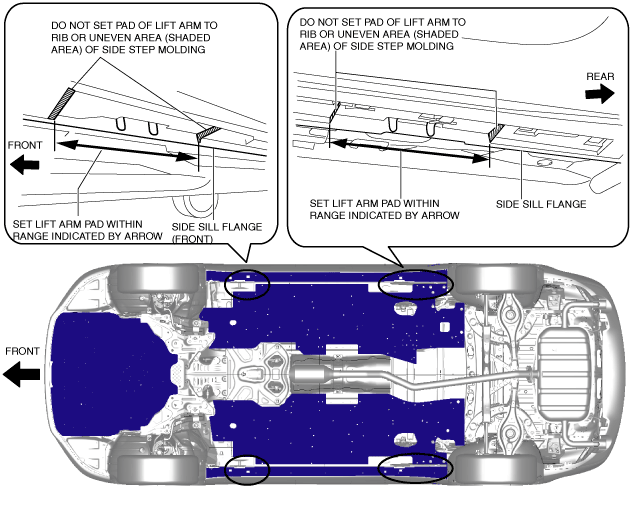

am3zzw00014820

Vehicles with side step molding

am3zzw00014821
