ENGINE [SKYACTIV-D 2.2]

id0100000002x6


Special Features

•  For SKYACTIV-D 2.2, the following have been adopted to lower fuel consumption.
―  Low compression ratio
•  Combustion efficiency by lower compression ration (14.0)
―  Weight reductions
•  Aluminum alloy cylinder block adopted
•  Exhaust manifold integrated cylinder heads adopted
―  Weight reduction and mechanical resistance loss improvements
•  Piston shape optimized
•  Narrowed down crankshaft journal
•  The SKYACTIV-D 2.2 has adopted an IDEVA for improved ignition stability during cold engine starts.
•  Two-step boost control has been adopted which realizes low emissions, low fuel consumption and high torque/response by the efficient, high air charging obtained in all ranges.
•  An exhaust gas recirculation (EGR) system has been adopted for cleaner exhaust emissions and improved fuel efficiency.
•  i-stop control has been adopted for improved fuel efficiency, reduced exhaust gas emissions, and reduced idling noise.
•  With the adoption of the i-ELOOP, charging efficiency during deceleration is improved. Because loss of engine force does not occur when the battery is recharged during deceleration, fuel economy is improved. (With i-ELOOP)

Specification

Item

Specification
MECHANICAL
Type
Diesel, 4-cycle
Cylinder arrangement and number
In-line, 4-cylinder
Combustion chamber
Direct injection
Valve system
DOHC, timing chain driven, 16 valves
Displacement
(ml {cc})
2,191 {2,191}
Bore × stroke
(mm {in})
86.0 × 94.3 {3.39 × 3.71}
Compression ratio
14.0:1
Valve timing
IN
Open
BTDC (°)
9
Closed
ABDC (°)
36
EX
Open
BBDC (°)
40 (IDEVA: -276)
Closed
ATDC (°)
8 (IDEVA: 200)
LUBRICATION SYSTEM
Type
Force-fed type
Oil pressure (reference value)
[Oil temperature: 70—80 °C {158—176 °F}, Coolant temperature: 70—80 °C {158—176 °F}]
(kPa {kgf/cm2, psi}[rpm])
Low oil pressure: 140―190 {1.43―1.93, 20.4―27.5}[1,500]
High oil pressure: 310―450 {3.16―4.59, 45.0―65.3}[3,500]
Oil pump
Type
Trochoid gear type
Oil filter
Type
Full-flow, paper element
Bypass pressure
(kPa {kgf/cm2, psi})
Type A: 230—270 {2.35—2.75, 33.4—39.1}
Type B: 225—265 {2.30—2.70, 32.7—38.4}
Oil capacity (approx. quantity)
Oil replacement
(L {US qt, lmp qt})
4.8 {5.1, 4.2}
Oil and oil filter replacement
(L {US qt, lmp qt})
5.1 {5.4, 4.5}
Total (dry engine)
(L {US qt, lmp qt})
6.0 {6.3, 5.3}
COOLING SYSTEM
Type
Water-cooled, Electromotive
Coolant capacity
(L {US qt, lmp qt})
U.K. specs. MTX: 8.8 {9.3, 7.7}
U.K. specs. ATX: 9.1 {9.6, 8.0}
European (L.H.D.) specs. MTX: 8.5 {9.0, 7.5}
European (L.H.D.) specs. ATX: 8.8 {9.3, 7.7}
Australian specs. MTX: 8.7 {9.2, 7.7}
Australian specs. ATX: 9.0 {9.5, 7.9}
Water pump
Type
Centrifugal, V-ribbed belt-driven
Thermostat
Type
Wax type
Opening temperature
(°C {°F})
80―84 {176―183}
Full-open temperature
(°C {°F})
95 {203}
Full-open lift
(mm {in})
8.5 {0.33} or more
Radiator
Type
Corrugated fin type
Cooling system cap
Valve opening pressure
(kPa {kgf/cm2, psi})
93.2―122.6 {0.951―1.250, 13.6―17.7}
Cooling fan
Type
Electric type
Number of blades
Cooling fan No.1: 5
Cooling fan No.2: 7
Outer diameter
(mm {in})
320 {12.6}
Cooling fan motor output
(W)
160
FUEL SYSTEM
Supply pump
Type
Electric control
Fuel injector
Type
Piezo-electric
Fuel tank
Capacity
(L {US gal, lmp gal})
51.0 {13.5, 11.2}
Fuel type
Type
EN590 or the equivalent
CHARGING SYSTEM
Battery
Voltage
(V)
12
Type
T-110
Generator
Output
(V-A)
12-150
STARTING SYSTEM
Starter
Type
Coaxial reduction
Output
(kW)
1.8
CONTROL SYSTEM
i-stop OFF switch
ON/OFF
Neutral switch
ON/OFF
CPP switch
ON/OFF
MAF sensor
Hot film
IAT sensor
Thermistor
MAP sensor
Semiconductor strain gauge
APP sensor
Hall element
CKP sensor
MR (Magnetic Resistance) element
CMP sensor
MR (Magnetic Resistance) element
ECT sensor
Thermistor
BARO sensor
Piezoelectric element
Fuel pressure sensor
Piezoelectric element
Current sensor
Shunt resistance, Thermistor
A/F sensor
zirconium element
Boost air temperature sensor
Thermistor
Fuel temperature sensor
Thermistor
Exhaust gas temperature sensor
Thermistor
Exhaust gas pressure sensor
Semiconductor strain gauge, piezoelectric element
Engine oil temperature sensor
Thermistor
Engine oil pressure sensor
Semiconductor strain gauge
Intake shutter valve position sensor
Hall element
EGR valve position sensor
Hall element
EGR cooler bypass valve position sensor
Hall element
Clutch stroke sensor
Hall element
Power brake unit vacuum sensor
Piezoelectric element

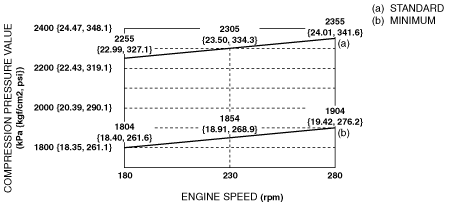

Compression pressure

am3zzn00005019

Engine oil [European specs.]

Recommended engine oil

Alternative engine oil
Mazda Original Oil Supra DPF 0W-30
Mazda Original Oil Ultra DPF 5W-30
ACEA C3
0W-30, 5W-30

Engine oil [Except European specs.]

Recommended engine oil
ACEA C3
0W-30, 5W-30
