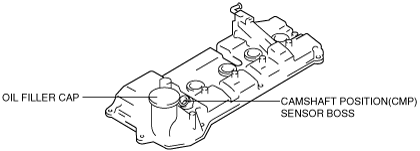

CYLINDER HEAD COVER CONSTRUCTION [MZR 1.6]
id0110f6100200
• The cylinder head cover is made of integrated aluminum alloy, which is lightweight and sound absorbent.
• The oil filler cap is a screw-in type.
• The boss for installing the camshaft position (CMP) sensor is provided at the front of the cylinder head cover.
