CAMSHAFT CONSTRUCTION [MZR 1.6]
id0110f6101300

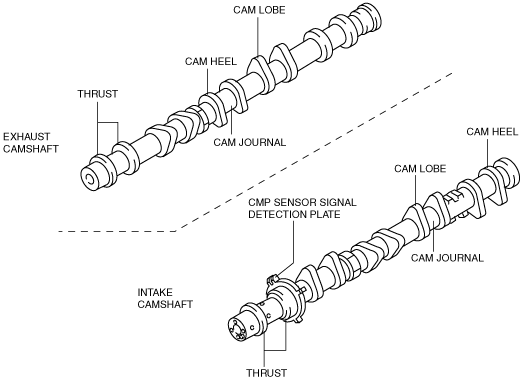

• A cast iron, highly rigid 5-axis hole camshaft has been adopted to insure higher reliability.
• Camshaft endplay is regulated at the rear of the No.1 journal.
• Lubricating oil is supplied from inside of the camshaft to each journal.
• Additionally the cam lobe part is chill cast to improve wear resistance, and the width of the cam heel part is shortened to reduce weight.
• The enhanced smooth-finishing precision on the cam lobe contact surfaces enables reduced friction and improved quietness.
• There is an oil line supplying oil to the variable valve timing actuator located on the intake port side camshaft (front of camshaft).
Camshaft specification
|
Item
|
IN
|
EX
|
|
Lift
|
(mm {in})
|
8.0 {0.31}
|
7.2 {0.28}
|
Valve timing
• The camshaft position sensor signal detection plate is press-fit to the intake camshaft.
|
Item
|
Specification
|
|
Valve timing
|
IN
|
Open
|
(°)
|
BTDC 37—ATDC 3
|
|
Close
|
(°)
|
ABDC 13—ABDC 53
|
|
EX
|
Open
|
(°)
|
BBDC 40
|
|
Close
|
(°)
|
BTDC 1
|
