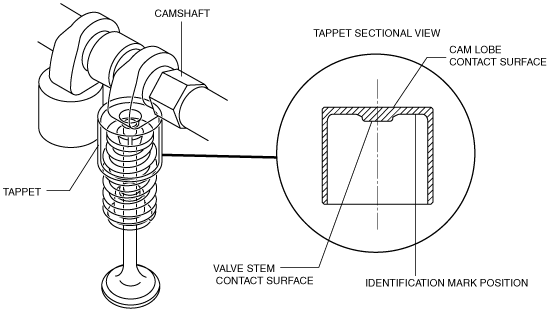

•  The tappet is shimless and integrated with the shim.

•  The enhanced smooth-finishing precision on the cam lobe contact surfaces of the tappets enables reduced friction and improved quietness.

•  The valve clearance can be adjusted by replacing the tappet. The tappet type can be determined by its engraved identification mark. The tappet thickness is set at between 2.85—3.49 mm {0.113—0.137 in}, and the tappet thickness is indicated by the two digits after the decimal in the identification mark. The identification mark can be used for reference when servicing, however, follow the servicing procedure to select a tappet.
