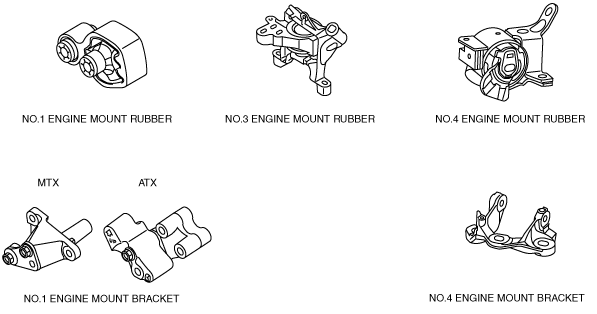

ENGINE MOUNT CONSTRUCTION [MZR 1.6]


id0110f6114000

•  The exterior frame of the No.1 engine mount rubber is made of aluminum alloy, and is composed of a torque rod-shaped structure including an anti-vibration function, which regulates the conventional rubber function and the rotation from the powertrain.
•  The No.3 engine mount rubber is oil-filled for noise reduction and vibration isolation.
am3zzn00004795
