ENGINE DISASSEMBLY/ASSEMBLY [MZR 1.6]

id0110f6800500

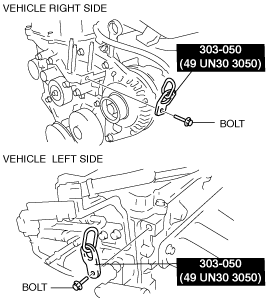

1.  Using the bolts part number 99794 1025 or M10×1.25, length 25 mm {0.98 in} to install the SST to the position shown in the figure, hang the engine and transaxle, and then take it down from the engine jack.

am2zzw00000190

2.  Remove following parts:

(1)  Starter (See STARTER REMOVAL/INSTALLATION [MZR 1.6].)

(2)  Transaxle (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [F35M-R] (MTX).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FN4A-EL] (ATX).)

(3)  Exhaust manifold (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.6].)

(4)  Generator (See GENERATOR REMOVAL/INSTALLATION [MZR 1.6].)

(5)  Fuel hose, fuel distributor and fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR 1.6].)

(6)  Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.6].)

(7)  Ignition coils (See IGNITION COIL REMOVAL/INSTALLATION [MZR 1.6].)

(8)  CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZR 1.6].)

(9)  Drive belt auto tensioner (See TIMING CHAIN REMOVAL/INSTALLATION [MZR 1.6].)

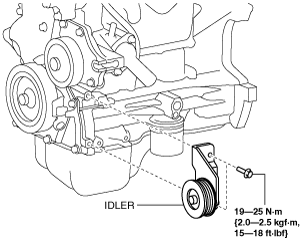

3.  Remove the idler. (Without A/C)

am3zzw00016333

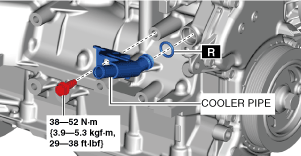

4.  Remove the cooler pipe.

am3zzw00020338

5.  Install in the reverse order of removal.
