CYLINDER HEAD GASKET [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]
id0110h6000300
Purpose, Function
• The cylinder head gasket is installed between the cylinder head and cylinder block to prevent leakage of air-fuel mixture, combustion gas, engine oil, and engine coolant.

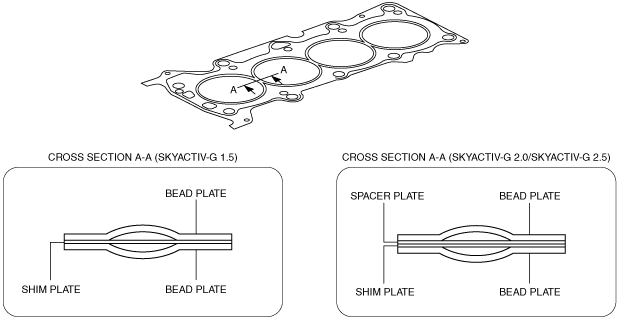

Construction
• A three-layer type metal gasket has been adopted for the cylinder head gasket. (SKYACTIV-G 1.5)
• A four-layer type metal gasket has been adopted for the cylinder head gasket. (SKYACTIV-G 2.0/SKYACTIV-G 2.5)
