ENGINE FRONT COVER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]
id0110h6000900
Purpose, Function
• The engine front cover covers the front of the engine to prevent engine oil spillage, noise leakage, and foreign matter penetration.
Construction

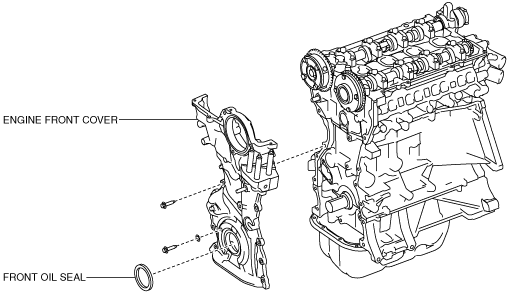

• The engine front cover is installed to the front of the engine.
• The lightweight engine front cover is made of aluminum alloy with excellent noise absorption.

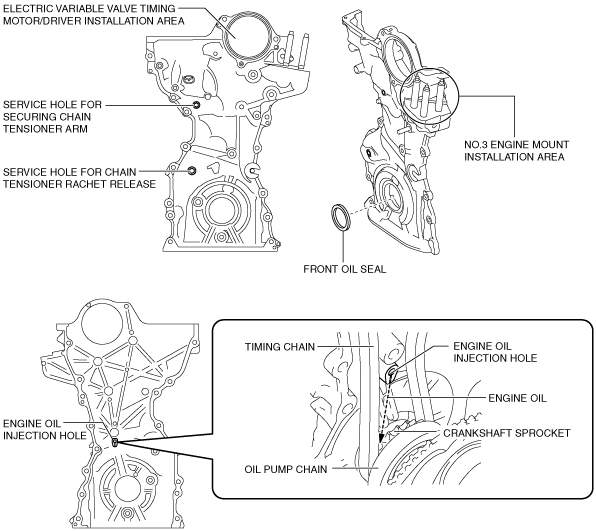

• The engine front cover has the following parts shown in the figure.
