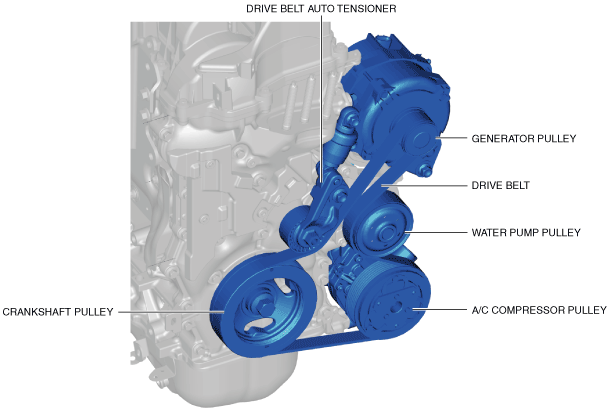

•  The drive belt transmits rotation force of the crankshaft pulley to the pulley for the auxiliary parts.

•  The drive belt is located in front of the engine.

am2zzn00002709

•  A V-ribbed belt has been adopted for the drive belt.

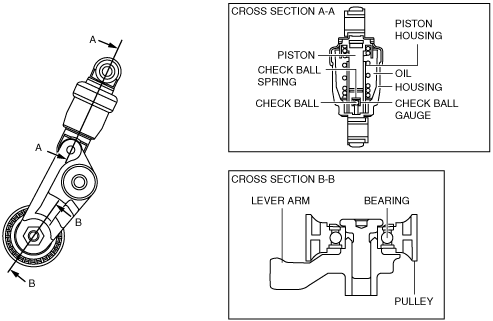

•  With the adoption of the oil pressure type drive belt auto tensioner, the change in tension by the oil pressure damper operation is absorbed. As a result, the sliding resistance has been reduced by lowering the drive belt tension setting.

am2zzn00002710
