OIL CONTROL VALVE (OCV) [SKYACTIV-D 2.2]

id0110s5001600

Purpose, Function

• The OCV switches the hydraulic transmission passage in the cylinder head to change the hydraulic pressure applied to lock pin of the rocker arm (No.2).

Construction

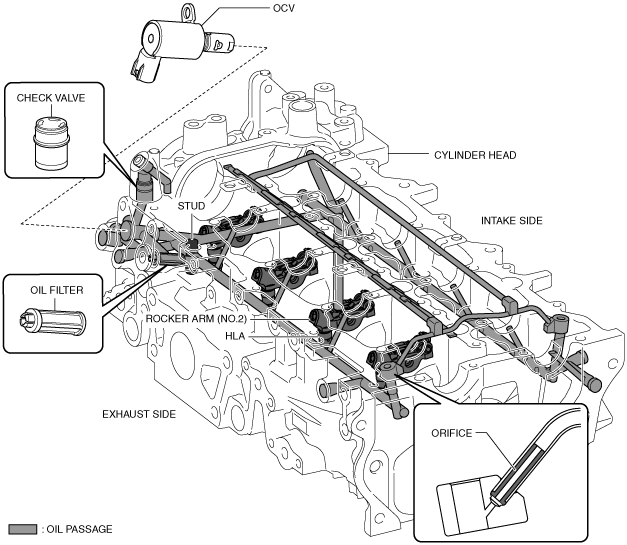

• The OCV is installed to the rear right side of the cylinder head.

ac5wzn00002045

• The OCV consists of the following parts:

ac5wzn00001803

Operation

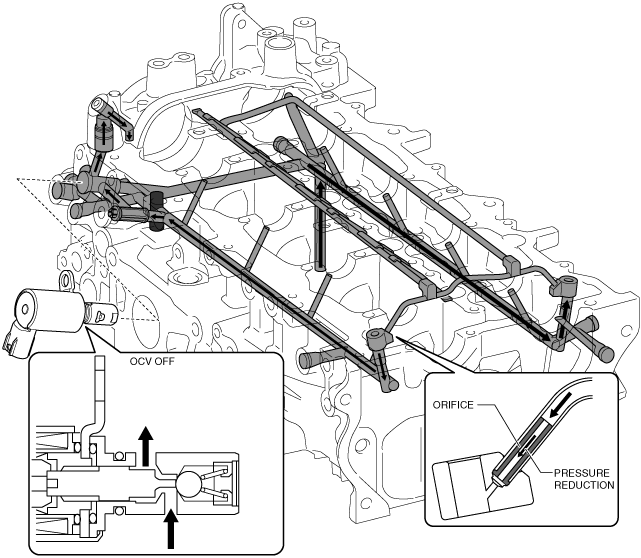

OCV OFF

• Engine oil (low hydraulic pressure) flows through the orifice in the hydraulic passage on the exhaust side.

ac5wzn00002046

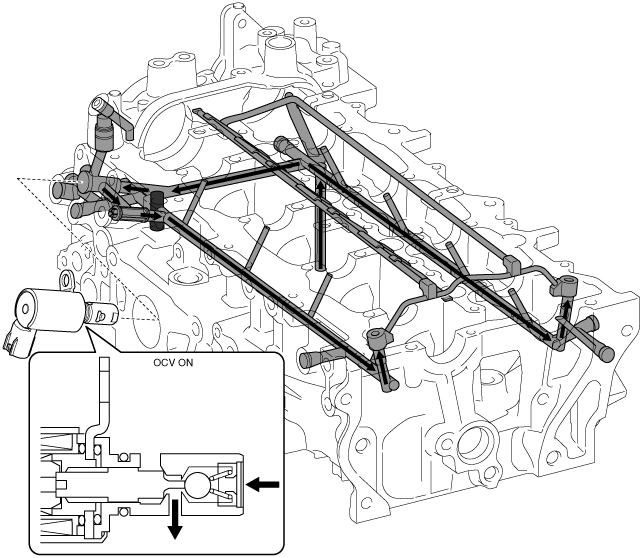

OCV ON

• Engine oil (high hydraulic pressure) not passing through the orifice flows in the hydraulic passage on the exhaust side.

ac5jjn00002136

Fail-safe

DTC

Fail-safe

P0079:00

•  Inhibits the two-stage turbo control.

•  Inhibits the EGR control.

•  The fast idle up correction for the idle speed control is inhibited.

•  Inhibits engine-stop by operating the i-stop function.

P0080:00

•  Inhibits the two-stage turbo control.

•  Inhibits the EGR control.

•  The fast idle up correction for the idle speed control is inhibited.

•  Inhibits engine-stop by operating the i-stop function.

•  PCM restricts engine-transaxle integration control.

DTC	Fail-safe
P0079:00	• Inhibits the two-stage turbo control. • Inhibits the EGR control. • The fast idle up correction for the idle speed control is inhibited. • Inhibits engine-stop by operating the i-stop function.
P0080:00	• Inhibits the two-stage turbo control. • Inhibits the EGR control. • The fast idle up correction for the idle speed control is inhibited. • Inhibits engine-stop by operating the i-stop function. • PCM restricts engine-transaxle integration control.
