OIL SHOWER PIPE [SKYACTIV-D 1.5]
id0111q2002800
Purpose, Function

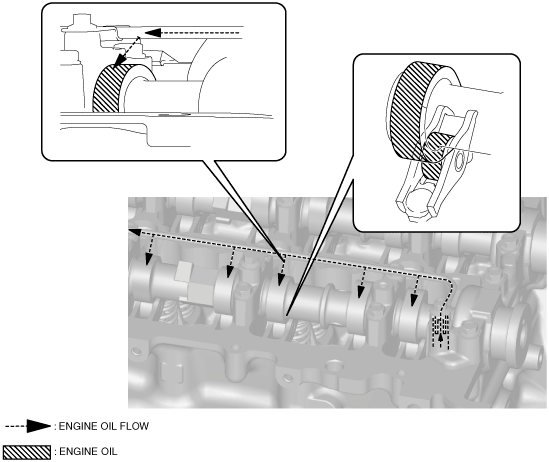

• The oil shower pipe injects engine oil to lubricate the contact points of the cam and rocker arm. As a result, wear resistance of sliding part is reduced.
Construction

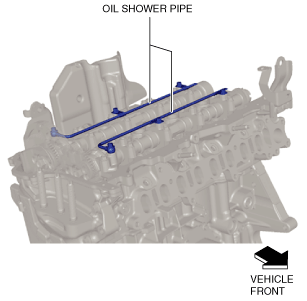

• The oil shower pipe is located on the camshaft cap.

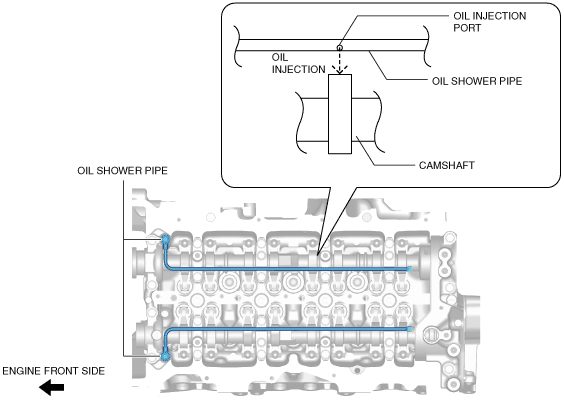

• The oil shower pipe has engine oil injection holes at the top of the camshaft.
• The oil shower pipe utilizes the engine oil injection holes at the top of the camshaft.
• The oil shower pipe injects engine oil from the engine oil injection holes using hydraulic pressure.
