•  The oil cooler routes engine oil and engine coolant through the interior and disperses the engine oil heat using the engine coolant. As a result, the oil temperature is maintained properly to reduce the engine oil deterioration.

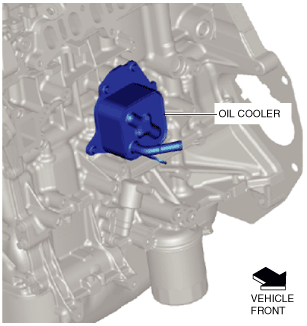

•  The oil cooler is located on the left side of the engine block.

am2zzn00003213

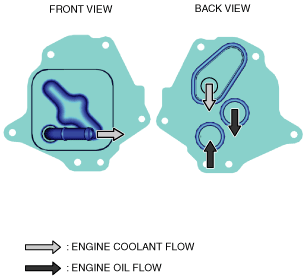

•  A water-cooled, 8-layer-type oil cooler has been adopted.

am2zzn00003214
