OIL PUMP CONSTRUCTION [MZR 1.6]
id0111s1100600
• The oil pump is directly driven by the crankshaft to reduce engine noise.
• A lightweight and compact trochoid gear type oil pump with excellent heat-resistant and noise reduction characteristics has been adopted. Due to this, oil discharge is stabilized.
• An efficient and compact trochoid gear type with 9.5 mm {0.37 in} wide rotors (inner rotor, outer rotor) has been adopted for the oil pump.

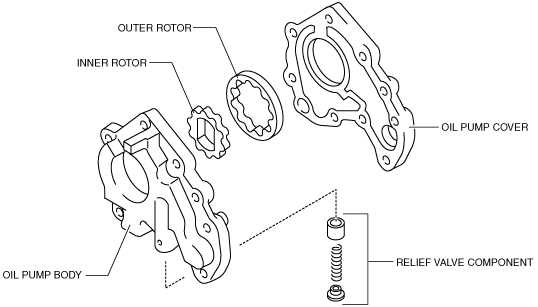

• The oil pump consists of the oil pump body, inner rotor, outer rotor, relief valve, and oil pump cover.
• An aluminum alloy oil pump cover has been adopted to reduce weight.
• The relief valve component, which adjust the oil pressure, is built into the oil pump body.
Oil pump specification (oil pump as single unit)
|
Item
|
Rotation speed [rpm]
|
Specification (kPa {kgf/cm2, psi})
|
|
Oil discharge pressure (reference value)
[Oil temperature: 100°C {212°F}]
|
1,500
|
210—270 {2.15—2.75, 30.5—39.1}
|
|
3,000
|
450—480 {4.59—4.89, 65.3—69.6}
|
