COOLING FAN COMPONENT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0112h9003200

Purpose, Function

• The cooling fan rotates according to vehicle conditions and enhances the cooling efficiency of the radiator.

Structural View

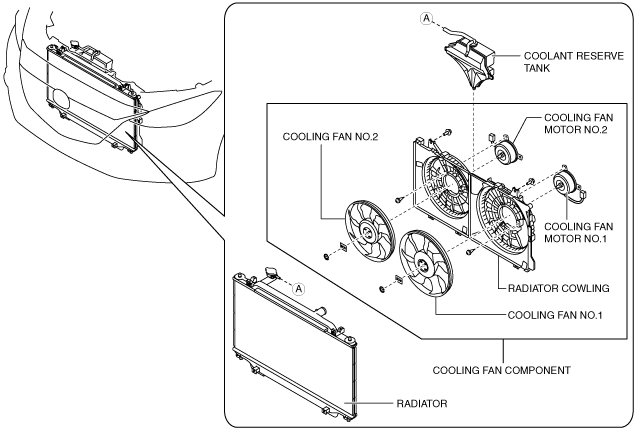

Cooling fan component type A

am3uun00003344

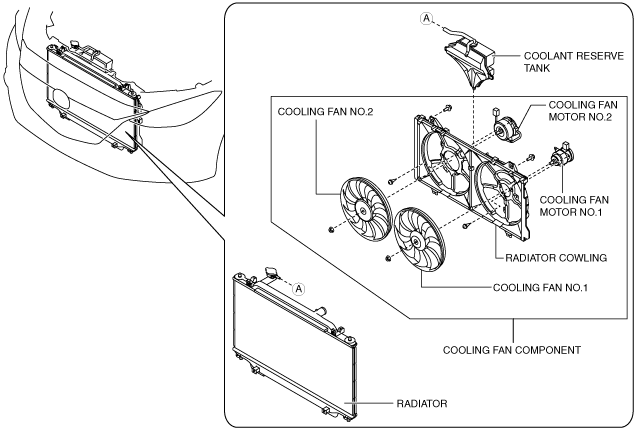

Cooling fan component type B

am3zzn00004793

Operation

• For electrical fan control details, refer to CONTROL SYSTEM. (See ELECTRICAL FAN CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

Fail-safe

• Function not equipped.
