•  The radiator disperses the engine coolant heat flowing internally by receiving the air flow against the vehicle while it is driven or the air flow produced by the cooling fan.

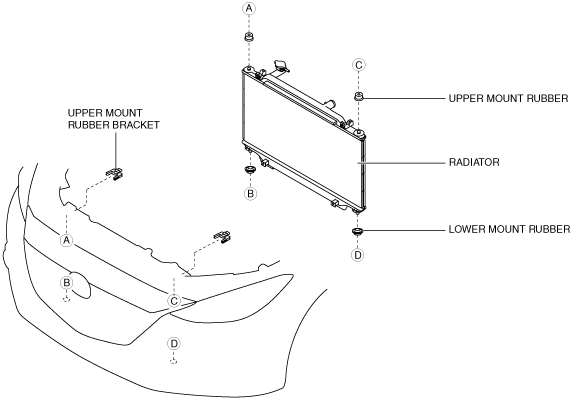

•  The radiator is installed to the front of the engine compartment.

•  Four mounting rubbers are utilized to decrease vibration.

am3uun00003345

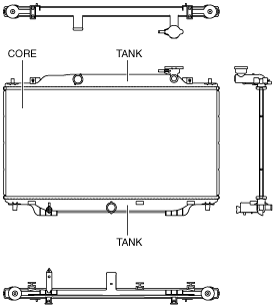

•  A down-flow radiator with corrugated fins has been adopted.

•  The radiator tanks are made of plastic and the core is made of aluminum for weight reduction.

am3zzn00004290
