COOLING FAN RELAY [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0112h9158700

Purpose, Function

• The cooling fan relay operates by receiving the signal from the PCM to supply power to the cooling fan motor.

Construction

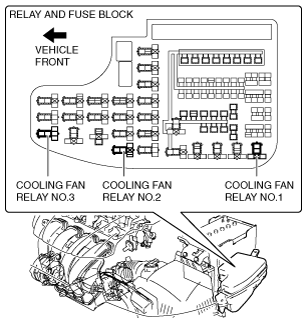

• The cooling fan relay is installed on the relay and fuse block.

am3zzn00005845

Operation

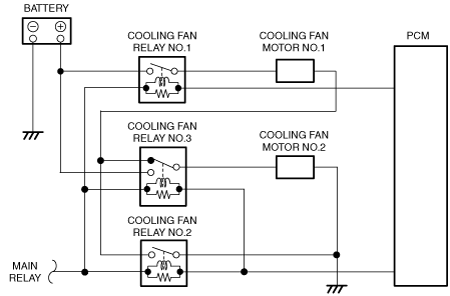

• The contact point is on when the battery voltage is supplied to the coil based on the signal from the PCM, and the battery voltage is supplied to the cooling fan motor.

am3uun00003349

Fail-safe

• Function not equipped.
