ELECTRIC WATER PUMP [SKYACTIV-D 1.5]

id0112q2004000

Purpose, Function

• The electric water pump adjusts the cooling performance of the charge air cooler.

Construction

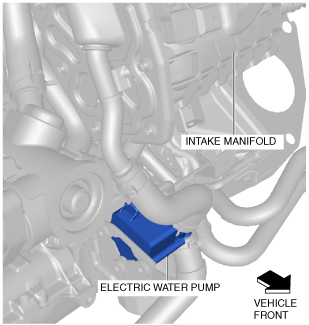

• The electric water pump is located underneath the intake manifold.

am2zzn00003221

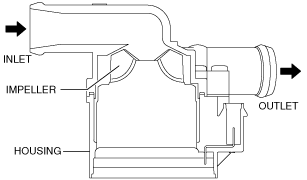

• The electric water pump consists of the housing and impeller.

am2zzn00003222

Operation

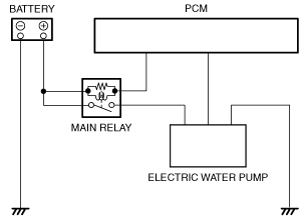

• The electric water pump is driven by the control signal sent from the PCM to maintain an appropriate intake air temperature.

am3zzn00005041

• For the electric water pump control, refer to the CONTROL SYSTEM. (See ELECTRIC WATER PUMP CONTROL [SKYACTIV-D 1.5].)

Fail-safe

DTC No.

Fail-safe function

P026A:00

•  PCM restricts engine torque.

•  Restricts the upper limit of the engine speed.

•  Inhibits the EGR control.

•  Inhibits the auto diesel particulate filter regeneration control.

•  Inhibits the compulsory diesel particulate filter regeneration control.

•  Inhibits engine-stop by operating the i-stop function.
