•  The engine radiator disperses the engine coolant heat flowing internally by receiving air flow against the vehicle while it is driven or produced by the cooling fan.

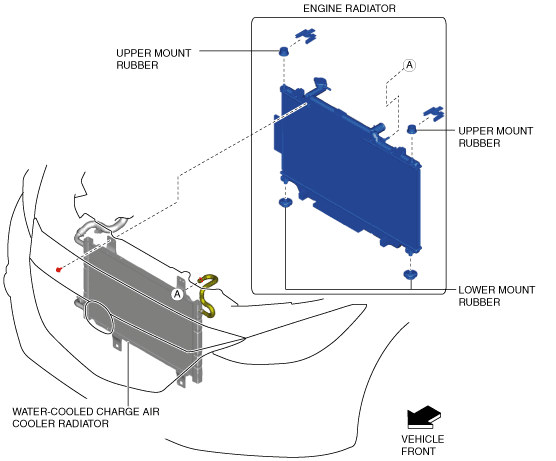

•  The engine radiator is located on the rear side of the water-cooled charge air cooler radiator.

am3zzn00005111

•  Vibration is absorbed via the four supporting mount rubbers attached to the engine radiator.

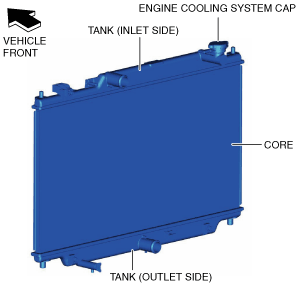

•  A down-flow type radiator has been adopted.

•  Corrugated fins have been adopted to the core fins.

•  Plastic tank material and aluminum core material have been adopted to achieve weight reduction.

am3zzn00005112
