• The cooling fan relay operates by receiving the signal from the PCM to supply power to the fan control module.
Construction

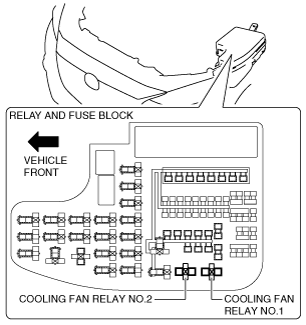

• The cooling fan relay is located on the relay and fuse block.
am3zzn00004310
Operation

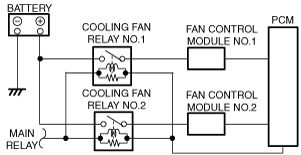

• The contact point is on when the voltage is supplied to the coil based on the signal from the main relay, and the battery voltage is supplied to the fan control module.
