COOLING SYSTEM LOCATION INDEX [SKYACTIV-D 1.5]

COOLING SYSTEM LOCATION INDEX [SKYACTIV-D 1.5]

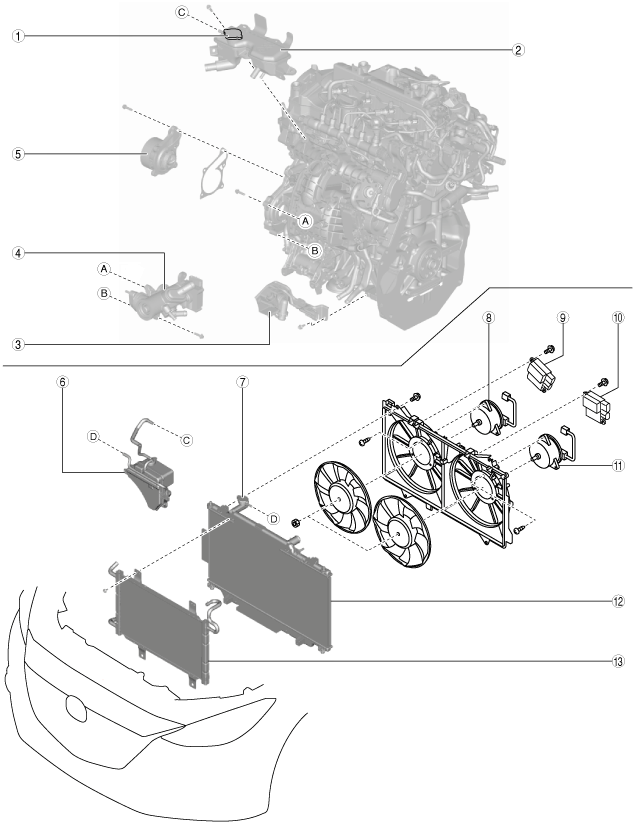

id0112q2800100

am3zzw00017163

1

Water-cooled charge air cooler reserve tank cap

(See WATER-COOLED CHARGE AIR COOLER RESERVE TANK CAP INSPECTION [SKYACTIV-D 1.5].)

2

Water-cooled charge air cooler reserve tank

(See WATER-COOLED CHARGE AIR COOLER COOLANT LEVEL INSPECTION [SKYACTIV-D 1.5].)

(See WATER-COOLED CHARGE AIR COOLER RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

3

Electric water pump

(See ELECTRIC WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

(See ELECTRIC WATER PUMP INSPECTION [SKYACTIV-D 1.5].)

4

Coolant control valve

(See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

(See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-D 1.5].)

5

Water pump

(See WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

6

Engine coolant reserve tank

(See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-D 1.5].)

(See ENGINE COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

7

Engine cooling system cap

(See ENGINE COOLING SYSTEM CAP INSPECTION [SKYACTIV-D 1.5].)

8

Cooling fan motor No.2

(See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

(See COOLING FAN MOTOR INSPECTION [SKYACTIV-D 1.5].)

9

Fan control module No.2

(See FAN CONTROL MODULE INSPECTION [SKYACTIV-D 1.5].)

10

Fan control module No.1

(See FAN CONTROL MODULE INSPECTION [SKYACTIV-D 1.5].)

11

Cooling fan motor No.1

(See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

(See COOLING FAN MOTOR INSPECTION [SKYACTIV-D 1.5].)

12

Engine radiator

(See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-D 1.5].)

(See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 1.5].)

(See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 1.5].)

(See ENGINE RADIATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

13

Water-cooled charge air cooler radiator

(See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-D 1.5].)

(See WATER-COOLED CHARGE AIR COOLER COOLANT REPLACEMENT [SKYACTIV-D 1.5].)

(See WATER-COOLED CHARGE AIR COOLER COOLANT LEAKAGE INSPECTION [SKYACTIV-D 1.5].)

(See WATER-COOLED CHARGE AIR COOLER RADIATOR REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)
