WATER PUMP CONSTRUCTION/OPERATION [MZR 1.6]


id0112s3100400

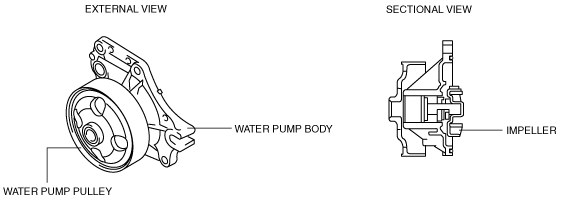

Construction

•  The water pump pulley, made of steel, and the water pump body, made of aluminum alloy, are integrated, and the impeller is built into the cylinder block for size reduction.
•  The water pump is not serviceable and must be replaced as a single unit if it has a malfunction.
am3zzn00002182

Operation

•  The water pump is driven by the drive belt.
