COOLING FAN RELAY CONSTRUCTION/OPERATION [MZR 1.6]
id0112s3224300
Construction

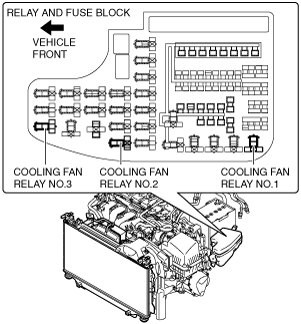

• The cooling fan relay is installed on the relay and fuse block.
am3zzn00005847
Operation

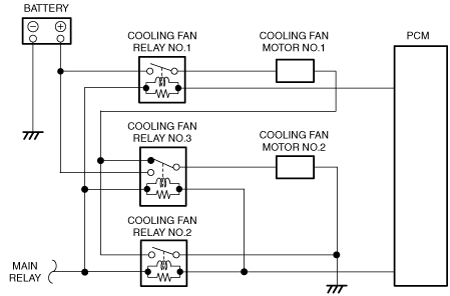

• The contact point is on when the battery voltage is supplied to the coil based on the signal from the PCM, and the battery voltage is supplied to the cooling fan motor.
