COOLING FAN MOTOR INSPECTION [MZR 1.6]

id0112s3801800


Part Inspection

1.  Verify that the battery is fully charged. (See BATTERY INSPECTION [MZR 1.6].)

2.  Disconnect the cooling fan motor connector (2 terminals).

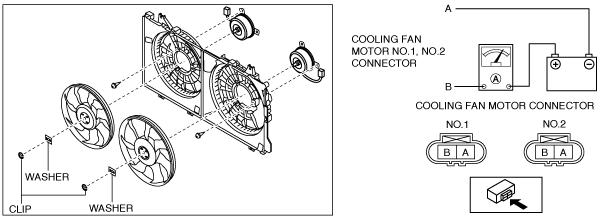

3.  Install a tester and battery to the cooling fan motor connector (2 terminals) as shown in the figure.

am3zzw00016354

4.  Verify that each cooling fan motor operates smoothly at the standard current.

•  If there is any malfunction, replace the applicable part.
Cooling fan motor standard current
No.1: 4.3—8.3 A [12 V]
No.2: 4.1—8.1 A [12 V]
