THERMOSTAT [SKYACTIV-D 2.2]

id0112s6003000

Purpose, Function

• When the engine coolant temperature is low, the thermostat blocks the engine coolant passage between the radiator and engine. As a result, because engine coolant cycles without passing through the radiator, warming is promoted.

Construction

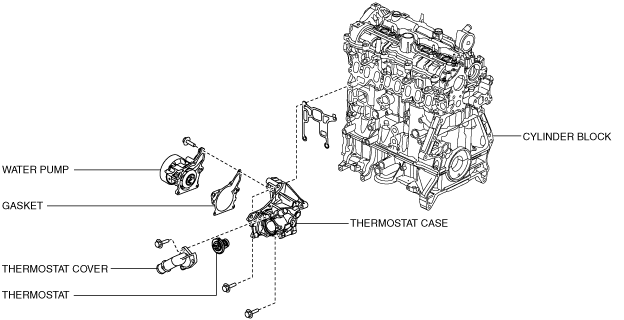

• The thermostat is installed to the thermostat case on the left front side of the engine.

ac5wzn00002024

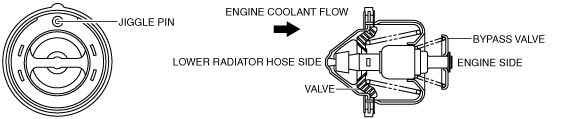

• The thermostat has the following parts:

ac5wzn00000126

Operation

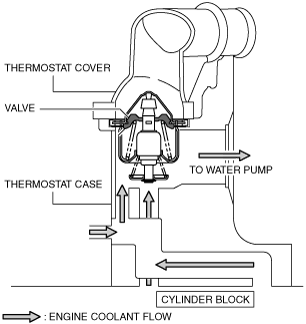

1. When the engine coolant temperature is low, the thermostat valve closes and engine coolant circulates without passing through the radiator.

ac5wzn00001844

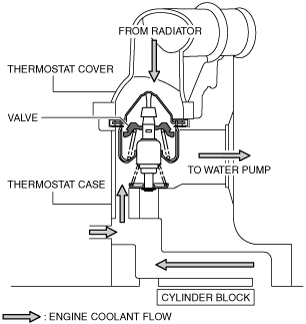

2. When the engine coolant temperature is 80—84 °C {176—183 °F}, the thermostat valve starts to open and the engine coolant passed through the radiator flows to the engine.

ac5wzn00001845
