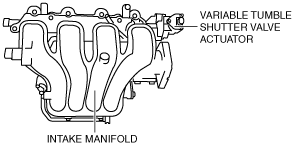

INTAKE MANIFOLD CONSTRUCTION [MZR 1.6]


id0113f4100800

•  Mainly consists of the variable tumble shutter valve actuator.
•  The intake manifold is made of hard plastic for weight reduction.
•  By lengthening the intake pipe, charging efficiency at low to middle engine speeds and low engine torque is enhanced resulting in higher torque.
am3zzn00003758
