INTAKE-AIR SYSTEM LOCATION INDEX [MZR 1.6]

id0113f4801700

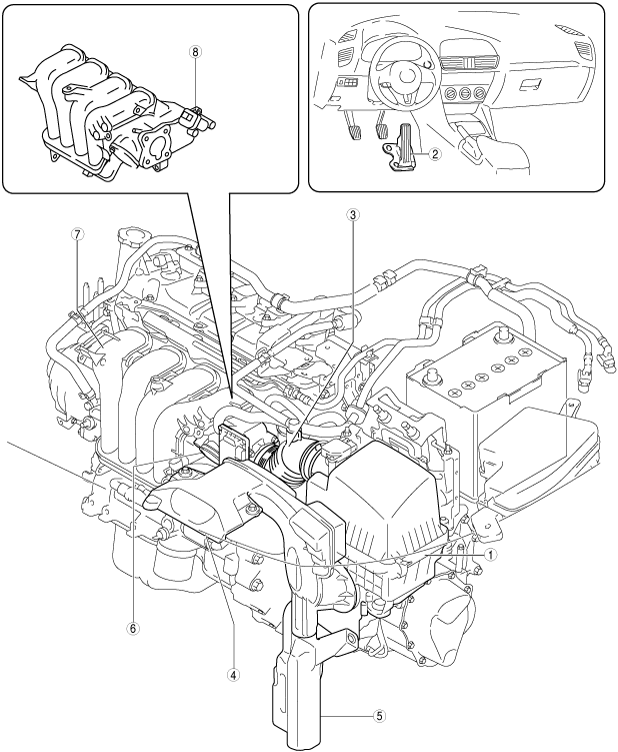

am3zzw00014048

1	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.6].) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [MZR 1.6].) (See AIR CLEANER ELEMENT INSPECTION [MZR 1.6].)
2	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZR 1.6].)
3	Air hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.6].)
4	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.6].)
5	Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.6].)
6	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.6].) (See THROTTLE BODY INSPECTION [MZR 1.6].)
7	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.6].) (See INTAKE MANIFOLD VACUUM INSPECTION [MZR 1.6].)
8	Variable tumble shutter valve actuator (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR REMOVAL/INSTALLATION [MZR 1.6].) (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR INSPECTION [MZR 1.6].)
