CHECK VALVE [SKYACTIV-D 1.5]


id0113q2266200


Purpose, Function

•  The check valve prevents pressure backflow generated in the vacuum pump.

Construction

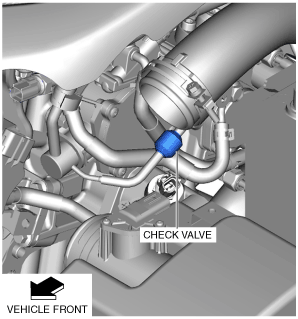

•  The check valve is located on the engine (rear).
am3zzn00005058
•  The check valve consists of the body and filter.
am2zzn00003250
•  A one-way valve is integrated in the check valve.

Operation

•  The one-way valve opens by the vacuum from the vacuum pump to introduce vacuum to the vacuum chamber.
am2zzn00003251
