•  The water-cooled charge air cooler is charged by the turbocharger with variable turbine geometry and cools the high-temperature, expanded intake air.

•  A water-cooled charge air cooler has been adopted which cools the charged intake air using a special coolant.

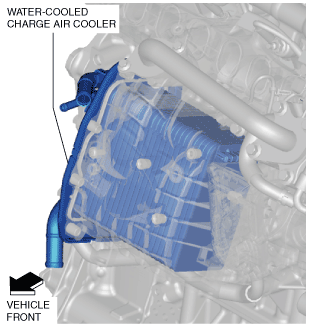

•  The water-cooled charge air cooler is located in the intake manifold.

am2zzn00003269

•  The water-cooled charge air cooler consists of the core, plate, isolator, water inlet, and water outlet.

am2zzn00003270

•  A corrugated fin type water-cooled charge air cooler has been adopted.

•  When replacing the water-cooled charge air cooler coolant, an air bleed passageway is established for bleeding air in the core area.

•  The water-cooled charge air cooler is charged by the turbocharger with variable turbine geometry, and the high-temperature, expanded air is cooled by the coolant.

am2zzn00003271
