•  Introduces intake manifold vacuum to the wastegate valve actuator.

•  The wastegate valve opens according to the control signal from the PCM.

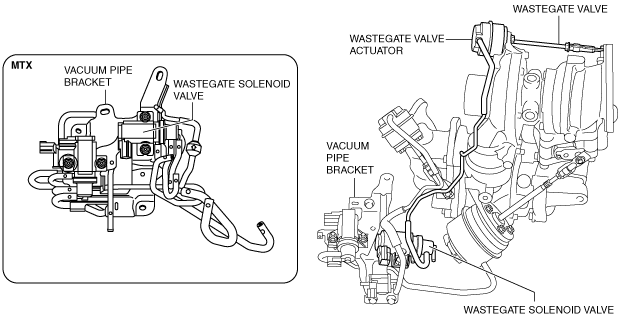

•  Installed to the vacuum pipe bracket on the side of the turbocharger.

ac5wzn00001938

•  The wastegate solenoid valve consists of a coil, spring, and plunger.

•  According to the control signal from the PCM, the coil is energized and the plunger is operated to open/close the wastegate solenoid valve.

ac5wzn00001939

•  By opening the wastegate solenoid valve, the intake manifold vacuum is introduced to the wastegate valve actuator.
