VACUUM CHAMBER REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7265400

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the turbocharger. (See TURBOCHARGER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

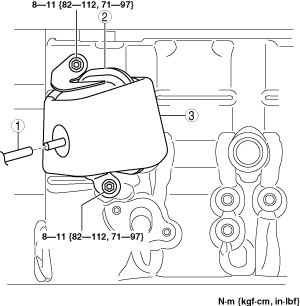

3.  Remove in the order shown in the figure.

am3zzw00018637

1	Vacuum hose
2	Vacuum chamber
3	Insulator (if equipped) (See Insulator Installation Note.)

4.  Install in the reverse order of removal.

Insulator Installation Note

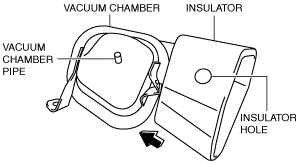

1.  Install the insulator as shown in the figure.

Note

•  First, pass the vacuum chamber pipe through the insulator hole.

am3zzw00016378
