•  Introduces vacuum in the vacuum pump to the vacuum chamber and prevents pressure leakage from the vacuum chamber.

•  The check valve is installed to the vacuum pipe bracket on the side of the turbocharger.

ATX

ac5wzn00002003

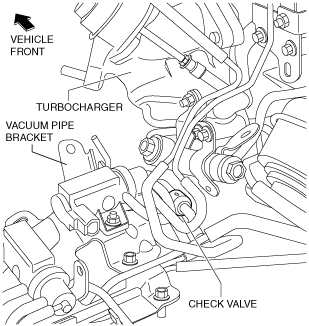

MTX

am6zzn00002502

•  The check valve consists of the body, cover, and umbrella seal.

ac5wzn00002004

•  A one-way valve is integrated in the check valve.

•  The one-way valve opens by the vacuum from the vacuum pump to introduce vacuum to the vacuum chamber.

ac5wzn00002005

•  Pressure from the vacuum chamber does not leak because of the one-way valve effect.
