GLOW CONTROL MODULE [SKYACTIV-D 2.2]
id0113z7706100
Purpose, Function
• Controls the voltage applied to the glow plugs for improved startability during cold temperatures.
• Controls the voltage applied to the glow plugs based on the control signal from the PCM.
Construction
• The glow control module is installed to the engine compartment.

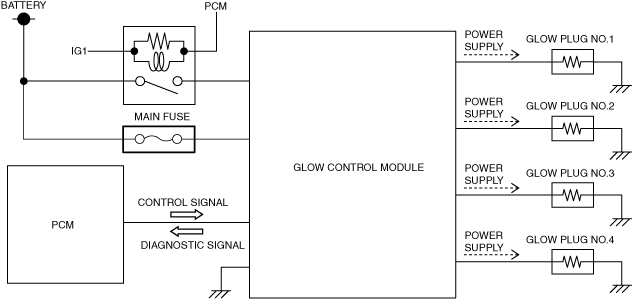

Operation
• Controls the voltage applied to the glow plugs based on the control signal from the PCM. In addition, the on-board diagnostic function is equipped and if there is a malfunction in the glow control module, a diagnostic signal is sent to the PCM. The PCM stores a DTC if necessary according to the received diagnostic signal.
