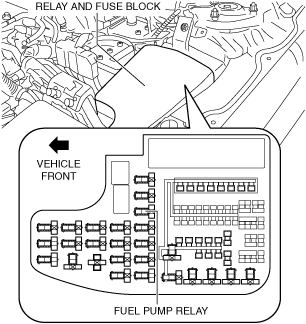

• The fuel pump relay is installed in the relay and fuse block.d
am3zzn00005653
Operation
• The contact point is on when the battery voltage is supplied to the coil based on the signal from the PCM, and the battery voltage is supplied to the fuel pump unit.
