FUEL TANK [SKYACTIV-D 1.5]

id0114q2104100


Purpose, Function

•  The fuel tank stores fuel safely.

Construction

•  The fuel tank is located under the rear seat.

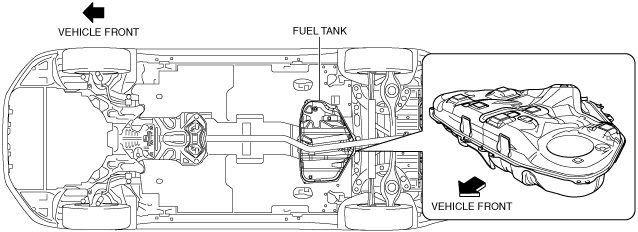

Fuel tank type A

am3zzn00005068

Fuel tank type B

am3zzn00005069
•  The fuel tank is made of steel. (Fuel tank type A)
•  The fuel tank is made of plastic. (Fuel tank type B)
•  The following parts are integrated in the fuel tank.

Fuel tank type A

am3zzn00005070

Fuel tank type B

am3zzn00005071
•  Non-return valve
(See NON-RETURN VALVE [SKYACTIV-D 1.5].)
•  Rollover valve
(See ROLLOVER VALVE [SKYACTIV-D 1.5].)
