FUEL FILTER [SKYACTIV-D 1.5]

id0114q2707000

Purpose, Function

• The fuel filter removes foreign matter and dirt in the fuel.

Construction

L.H.D.

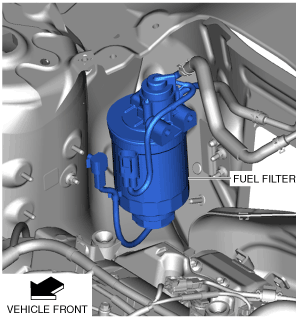

• The fuel filter is installed in the engine comportment.

am3zzn00005077

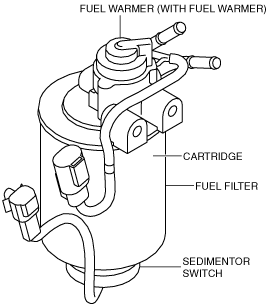

• The fuel filter consists of the fuel warmer (with fuel warmer), sedimentor switch and the cartridge.

am3zzn00005078

R.H.D.

• The fuel filter is installed in the engine comportment.

am3zzn00005079

• The fuel filter consists of the sedimentor switch and the cartridge.

am3zzn00005080
