FUEL FILTER DISASSEMBLY/ASSEMBLY [SKYACTIV-D 2.2]

id0114z7485100

Warning

•  Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the “Fuel Line Safety Procedure” to prevent the fuel from spraying.

―  Fuel may cause irritation if it comes in contact with skin and eyes.

―  If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.

•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before servicing the fuel system, make sure to discharge static electricity by touching a vehicle.

Caution

•  If parts are exposed to the fuel, their function may be decreased or a fire may occur. Spread a rag to absorb any leaked fuel.

Drain Plug Removal/Installation

1.  Remove the fuel filter. (See FUEL FILTER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

2.  Remove the drain plug.

L.H.D.

ac5uuw00009842

R.H.D.

am3zzw00021086

3.  Install in the reverse order of removal. (See Drain plug installation note.)

Drain plug installation note

1.  Tighten the drain plug enough to the fuel filter by hand.

Sedimentor Switch Removal/Installation

1.  Remove the fuel filter. (See FUEL FILTER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

2.  Remove in the order indicated in the figure.

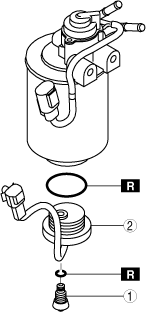

L.H.D.

ac5uuw00009843

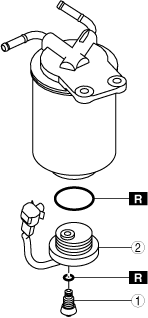

R.H.D.

ac5wzw00012808

1	Drain plug (See Drain plug installation note.)
2	Sedimentor switch (See Sedimentor switch installation note.)

3.  Install in the reverse order of removal.

Sedimentor switch installation note

1.  Tighten the sedimentor switch enough to the fuel filter by hand.

Drain plug installation note

1.  Tighten the drain plug enough to the fuel filter by hand.

Fuel Filter Removal/Installation

1.  Remove the fuel filter. (See FUEL FILTER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

2.  Disassemble in the order indicated in the table.

L.H.D.

am6zzw00018035

R.H.D.

am6zzw00018036

1	Sedimentor switch (See Sedimentor switch installation note.)
2	Fuel filter (See Fuel filter installation note.)

3.  Assemble in the reverse order of removal.

Fuel filter installation note

1.  Apply a small amount of fuel to the fuel filter O-ring. Tighten the fuel filter approx. 3/4 by hand.

Sedimentor switch installation note

1.  Tighten the sedimentor switch enough to the fuel filter by hand.

Fuel Warmer Removal/Installation

1.  Remove the fuel filter. (See FUEL FILTER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

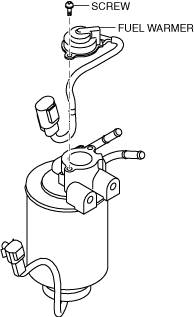

2.  Remove the fuel warmer.

ac5uuw00009845

3.  Install in the reverse order of removal.
