FUEL TANK [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0114zc104100


Purpose, Function

•  Store fuel safely and supply fuel to the engine.

Construction

•  The fuel tank is installed below the rear seat.
am3zzn00004851
•  The fuel tank is made of plastic.

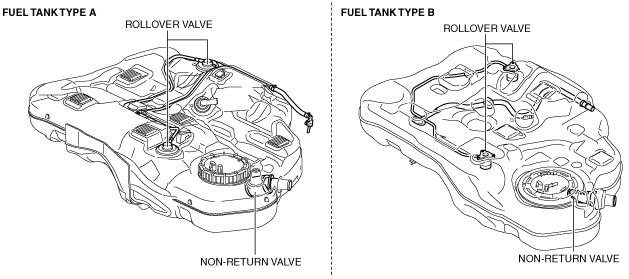

•  The following parts are integrated in the fuel tank.
―  Non-return valve
(See NON-RETURN VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
―  Rollover valve
(See ROLLOVER VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
am3zzn00004852
