MAIN SILENCER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0115zc101000


Purpose, Function

•  Reduces the exhaust noise.

Construction

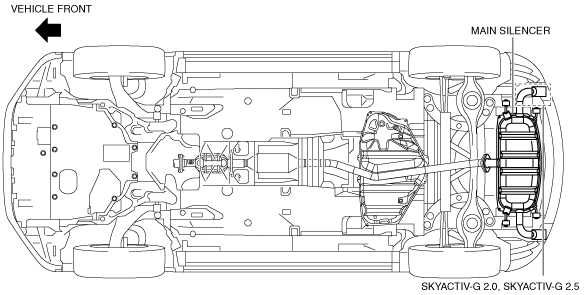

•  The main silencer is installed to the vehicle rear, under the trunk compartment.
am3zzn00004329
•  The main silencer consists of the filters, Stuffing filter and stuffing holder.

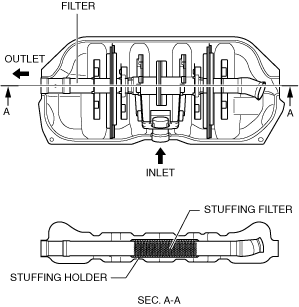

SKYACTIV-G 1.5

am3zzn00006030

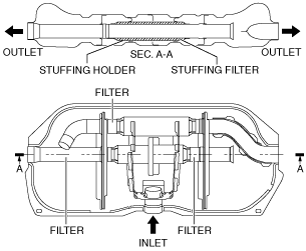

SKYACTIV-G 2.0

am3zzn00006031

SKYACTIV-G 2.5 (type A)

am3zzn00006031

SKYACTIV-G 2.5 (type B)

am3zzn00006497

SKYACTIV-G 2.5 (type C)

am3zzn00006498
