QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [SKYACTIV-D 1.5]

id0116q2153000

Fuel Tank Type B Only

Purpose, function

• Serviceability has been improved by the easy disconnection/connection of the quick release connector.

Construction

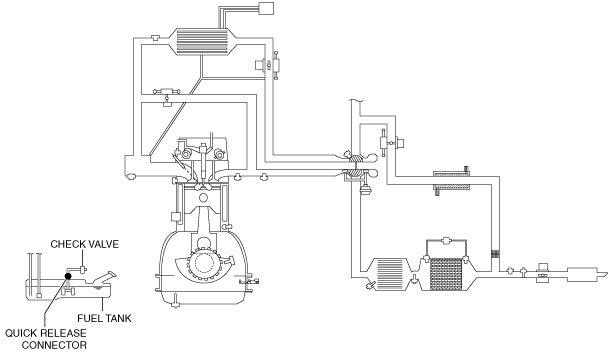

• Quick release connectors are located on the following:

am3zzn00005103

• An SST is not used with this type.

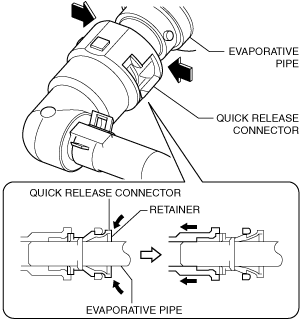

am3zzn00005263

• Consists of retainer and O-ring.

• To connect the quick release connector properly, push it into the evaporative pipe until a click sound is heard.

• The quick release connector can be removed by pushing the end of the retainer.
