EVAPORATIVE CHAMBER [SKYACTIV-D 1.5]
id0116q2156800
Purpose, function
• The evaporative chamber prevents water penetrating the atmospheric air inlet.
Construction

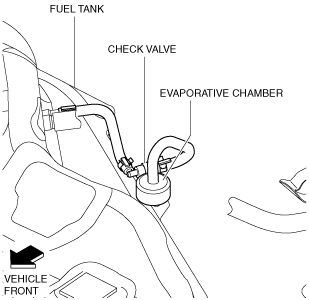

• The evaporative chamber is located to the fuel tank.
Operation
• There partitions protect the fuel tank by preventing flooding as atmospheric air enters from the airflow holes.
